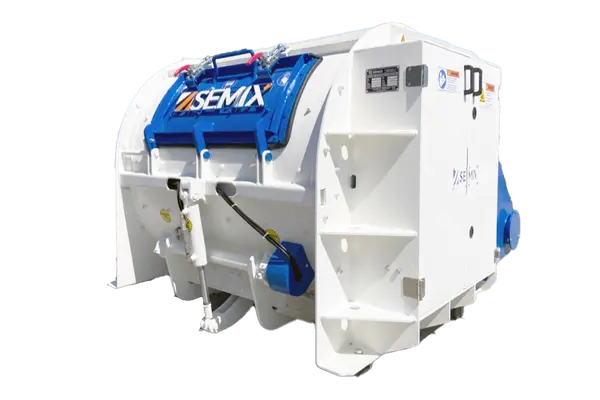

1.0 m³ Single Shaft Concrete Mixer

1500/1000 liters of compacted concrete mixing capacity

Technical Details

Compacted Concrete Per Batch: 1.0 m³

Dry Volume: 1.50 m³

Motor Power: 37 kW

Maximum Grain Size : 60-75 mm


Mixing Blades & Wearing Plates

Mixing Blade:

Ni-Hard 4 (Chrome, Nickel special alloy cast iron)


Stripping Blade:

Ni-Hard 4 (Chrome, Nickel special alloy cast iron)


Internal Wearing:

HARDOX 450


Ni-Hard 4:

In all SEMIX Concrete Mixers, Ni-Hard 4 alloys are being used in mixer blades. NiHard4 is a white cast iron product with nickel and chromium alloying, to give a hard chromium carbide in a martensitic matrix. This structure is ideal for products under conditions of high abrasiveness and high impaction conditions.



Automatic Lubrication System

Lubrication : 4 Points Automatic Lubrication System SKF - LINCOLN (German)



Automatic lubrication system is integrated with the PLC and SCADA, the system periodically lubricates the necessary points and preventing from major problems. These systems use sensors to detect the level of lubricant present and dispense the appropriate amount automatically.
